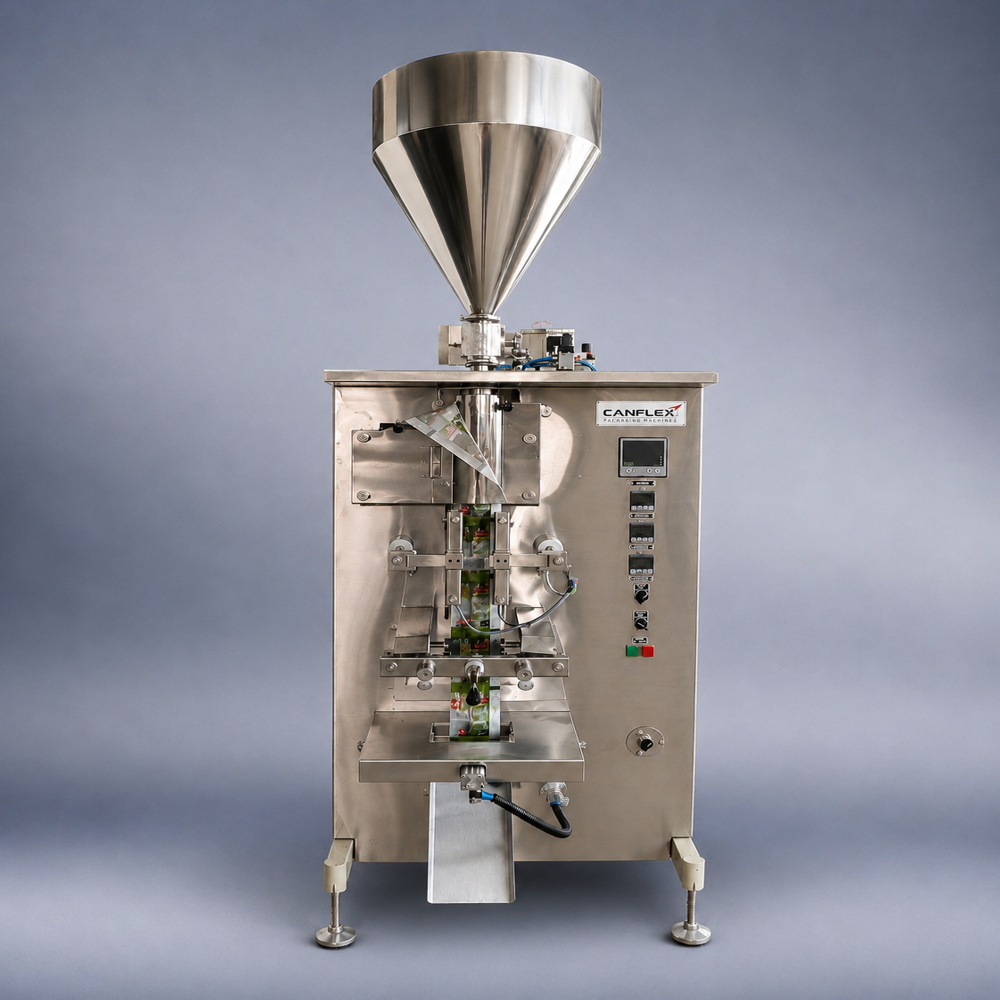

Ginger Garlic Paste Packing Machine

300000 INR/Unit

Get a Price/Quote

Product Details:

Product Type Paste Packing Machine
Material Stainless Steel
Application Food
Computerized No
Automatic Grade Automatic
Drive Type Electric
Voltage 220 Volt (v)
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Ginger Garlic Paste Packing Machine Price And Quantity

Minimum Order Quantity 1 Unit
Price 300000 INR/Unit

Ginger Garlic Paste Packing Machine Product Specifications

Automatic Grade Automatic
Voltage 220 Volt (v)
Product Type Paste Packing Machine
Material Stainless Steel
Feature ECO Friendly Lower Energy Consumption High Efficiency
Computerized No
Warranty 1 Year
Drive Type Electric
Application Food
Color Gray
Weight (kg) 260 Kilograms (kg)

Ginger Garlic Paste Packing Machine Trade Information

Supply Ability 100 Unit Per Month
Delivery Time 10 Days

Product Description

We are involved in manufacturing and exporting a wide range of machinery for Paste Products like Ginger Garlic Paste Packing Machine. As the name implies, Offered machine is widely used in food processing industry for packing of garlic paste in pouches. Our technical experts make use of the finest quality components and contemporary techniques to efficiently manufacture this machine in conformity with set industry standards. Moreover, our clients can avail this Ginger Garlic Paste Packing Machine from us in different technical specifications at industry leading rates.

Specification

Feeding Head	Mechanical Piston filling system
Film Material	Laminated Film
Film Thickness	80 Microns
Film Width	210mm
Inner Core Dia of Film Roll	70mm
Machine Dimensions	Height-1500mm x Width-950mm x Length-1050mm
Net Weight	260 kg (Approx)
Outer Dia of the Film Roll	350mm
Packing Range	150 gram
Peak Power	3 kW
Pouch Counter	Provided
Pouch Style	Three Side sealing
Pouch Width	105 mm
Power Consumption	1.0kW / Hour
Power Requirement	1 Single Phase, 220 V 50Hz
Production Speed	50 Pouches per min
Sealer Heating System	Continuous
Pouch Length	145 mm

Features:

This machine is equipped with single head and operates automatically
This machine can fill and seal the paste in hot temperature about 80-90 degree C
Have the versatility to provide fast changeover between many different packaging formats
Greater speed and versatility are the major benefits of this machine
The compact design of this machine improves the production capacity and consumes minimum power
Integrated temperature controller for energy conservation and film protection

Model Name: Cannon 100 4s PF

Application:

This machine is ideal for packaging of various types of viscous and non viscous liquids, paste, cream, tomato paste, sauce, jelly, ginger-garlic paste, fruit pulp, lubricant, adhesive, paints, dismembers, etc.

Technical Specifications
Feeding head	Mechanical piston filling system-Pneumatic piston filling system
Production speed	45 to 50 pouches per min
Packing range	10-100 ml-gm
Film Width	up to 210 mm
Film Thickness	60 to 80 microns
Film Material	Any heat sealable laminated film.
Sealer heating system	Continues only
Inner Core Dia. of Film Roll	70 mm
Outer Dia of the film roll	up to 350 mm

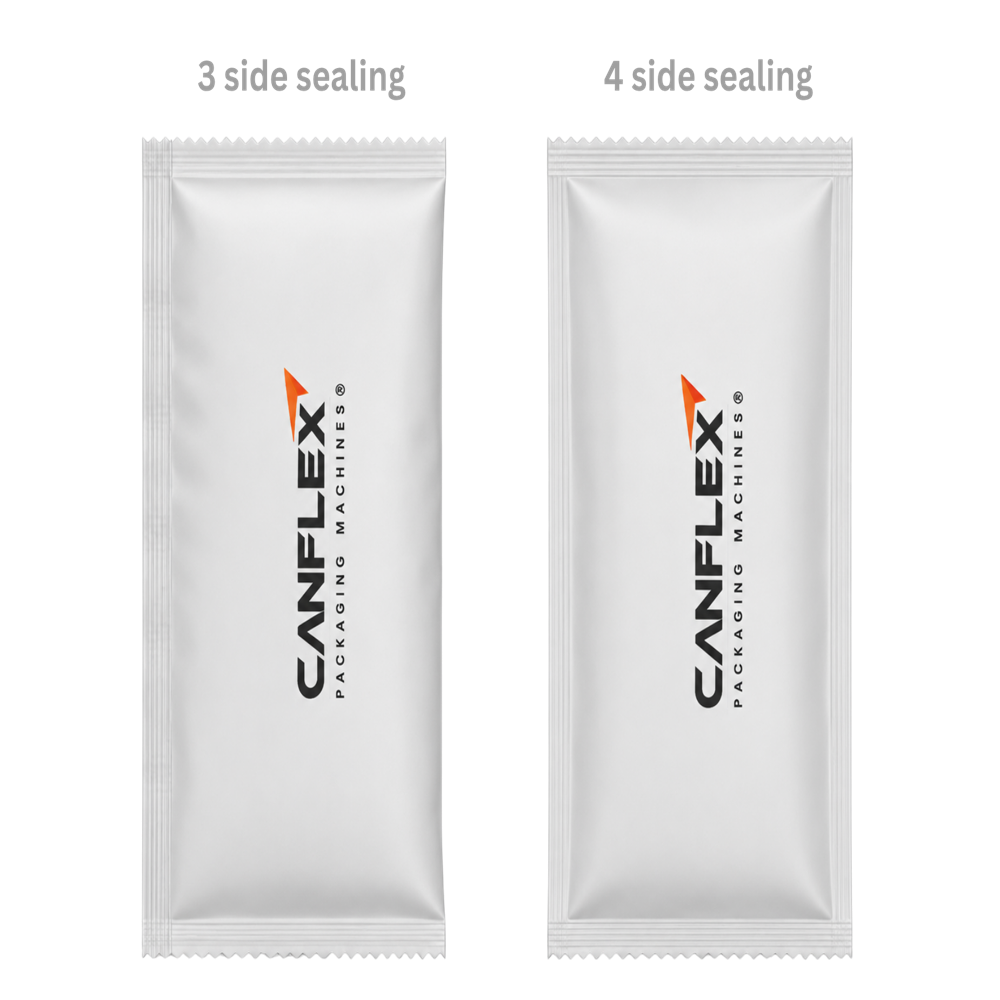

Pouch Style	3 or 4 side seal pillow pouch
Pouch width	up to 105 mm.
Pouch Length	up to 145 mm
Power Consumption	1.2 kW/Hour
Peak Power	3 kW
Air compressor	2 Hp. 1 Phase, 230 v,Ac 50 Hz (only for pneumatic machine)
Air consumption	4 CFM 20 C(only for pneumatic machine)
Compressed air pressure	6.5 kg-cm2(only for pneumatic machine)
Power requirement	Single Phase, 230 V, 50 Hz
Pouch Counter	Provided
Date printing Device	Optional
Machine Dimensions	Height 1500x Width 950x Length 1050mm
Net Weight	260 kgs (Approx).
